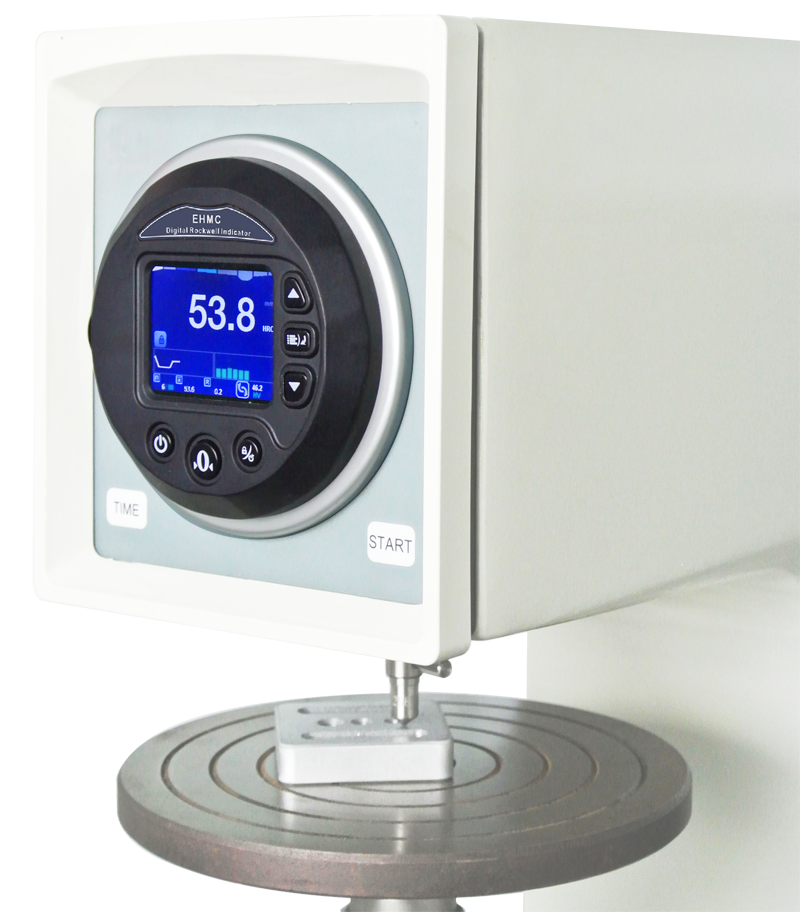

EHMC series Digital Rockwell Indicator

EHMC series Digital Rockwell Indicator



EHMC series Digital Rockwell Indicator

Feasures

  • Replace common dial Rockwell indicator, digitizing with the most economical and convenient way.

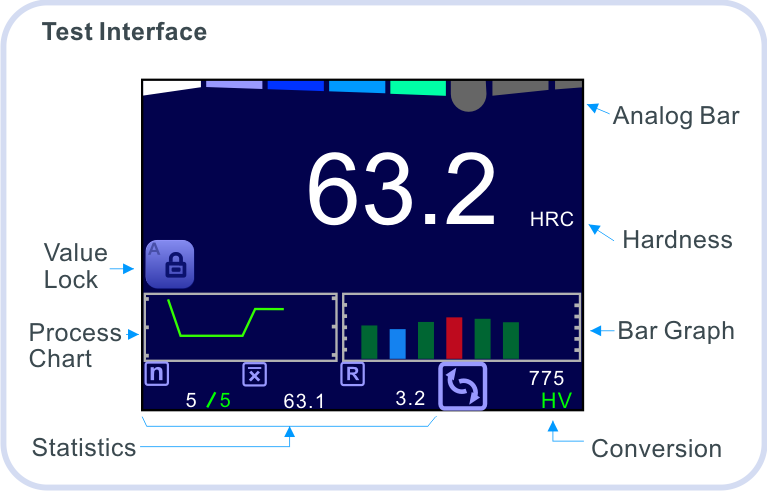

  • TFT Color LCD display.
  • Supports all Rockwell hardness test scales, include superficial Rockwell and plastics Rockwell.
  • Multiple standard hardness conversions and customized conversions.
  • Integrated power supply system. Fully compatible with battery and external power supplies.
  • Various fixing method, suitable for manual or motorized tester.

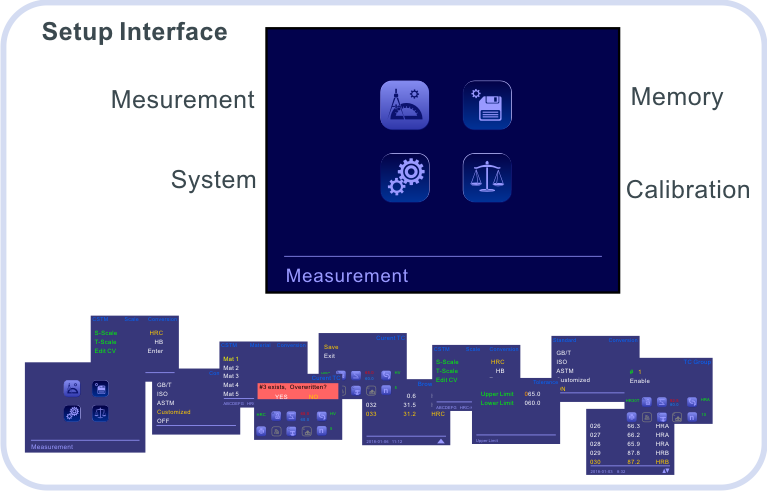

  • Variety of data management and processing functions.

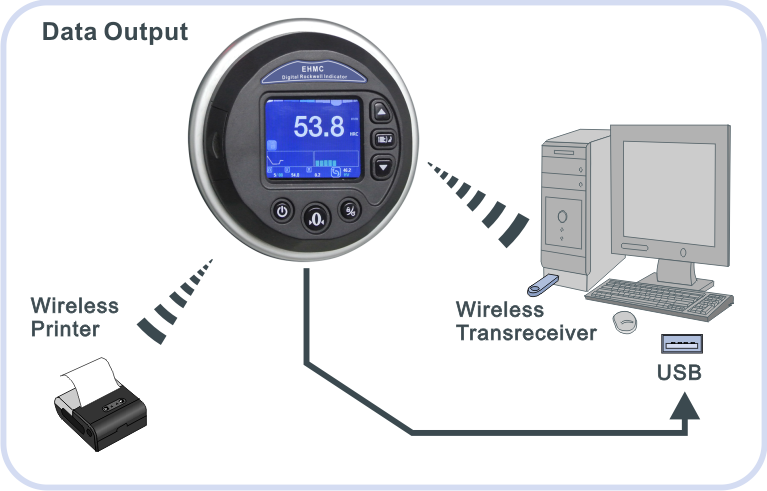

  • USB port and wireless interface for data upload to PC.
  • Wireless printing.

  • Specifications

      Scale   All Rockwell scales
      (Includes: regular scales, superficial scales and plastic scales)
      Displayer   320 x 240 TFT Color LCD
      Memory   500 readings
      Test Standards   GB/T 230, ASTM E18, ISO 6508
      Conversion Standards   GB/T,ISO,ASTM and Customized
      Resolution   Hardness  0.1 HR,
      Displacement  0.001 mm
      Data Upload   USB and Wireless
        (Wireless Transceiver optional)
      Print   Wireless Printing
        (Printer optional)
      Power   Li-ion batteries,
        or 5VDC external power supply
      Dimensions   ø114x 37 mm,
         ( Mounting part ø108 x16mm )
      Weight   420 grs


    EHMC-3 EHMC-3 EHMC-3

                    Mounting Type

    Model EHMC-1 EHMC-2 EHMC-3

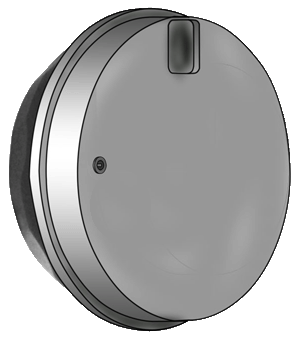

    Type EHM150B-2

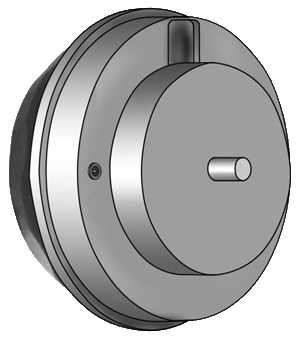

    EHM150B-3

    EHM150B-4

    Order No. EON143a0000 EON143b0000 EON143c0000
    Description
    Mouning part:   ø108*16


    Mouning part:   ø8*13


    Mouning part:   ø10*15

    Drawing
    Mounting Drawing




    Accessories

    Package


    Optional

    Software(Free download)
    Mini Printer EPX58P
    EWT-USB1 Wireless Transceiver
    Reference & Download

    Data Sheet     Manual
    Software     Application Note
