EDC2000 Digital Comparator


Order No.:EON521-0000

Feasures

  • Digital and analog dual display.
  • Multi-measurement mode: ABS / INC.
  • With basic TIR measurement capabilities.

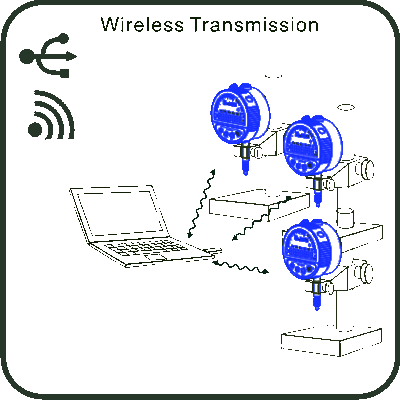

  • Multi-data transmission interface: USB interface, wireless interfacen.
  • Wireless report printing.
  • Remote sensing ˇ°buttonˇ±: non-contact operation.
  • Display unit can be rotated for a variety of installations.
  • RGB LED tips, alarm display.
  • Protection level: IP54.

  • Specifications

    Measuring Range 2 mm (0.078 inch)
    Accuracy ±0.5µm
    Resolution 0.1 µm (0.005 mil)
    Repeated Error 0.3 µm (0.01 mil)
    Measuring Force 0.8 ~ 1 N
    Power 3.7V Li-ion rechargeable battery
    Charger / Adapter USB / BM charger, 110 ~ 240VAC
    Output Interface USB, wireless serial port

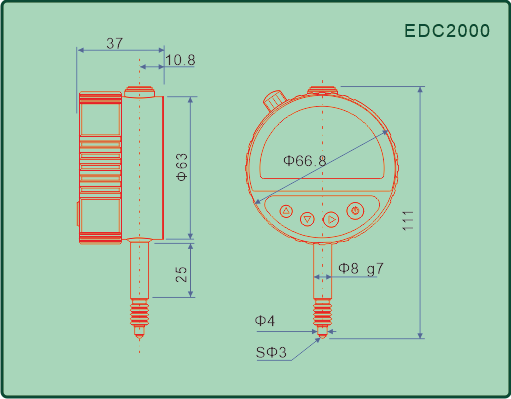

    Dimensions 37X70X110 mm
    Net Weight 0.3 kg (1.5 lb)
    Certificate CE


    Accessories

    Mainly Unit
    Data Cable
    Recharger
    Package


    Optional

    Thermal wireless printer
    EWT-USB1 Wireless Transceiver
    Reference & Download

    Data Sheet     Manual
    Software     Application Note
