Feasures
 8 mm diameter body.
Excellent for measuring features close together.
Accuracy better than 0.1 µm.
Spring actuation contact sensor.
Standard gauge probe tip force 0.7N (other options available).
Displacement sensor with IP65 sealing.
Superior performance compared to traditional LVDT displacement sensors.
|
Specifications
| Model |
EDL05 |
EDL10 |
| EDL10H |
EDL10M |
EDL10L |
| Measuring Range |
5 mm |
10 mm |
| Linearity |
0.3 % |
| Accuracy * |
0.1 µm/1mm |
1 µm / 3mm |
2 µm |
5 µm |
| Repeatability * |
3 µm |
2 µm |
0.6 µm |
2 µm |
| Resolution ** |
0.1 µm |
1 µm |
0.2 µm |
2 µm |
| Measuring Force |
0.7±0.2 N (the others optionable) |
| Mechanical Range |
Measuring Range + 1 mm |
| Connector & Cable |
cable Φ 5mm*2.0m; Connector M8/6PIN-GX12/6PIN |
| Mounting Size |
Φ 8 g7 |
| Protection |
IP 65 |
| Dimensions |
Φ 8 x 104 mm |
Φ 8 x 128 mm |
* With TRL18 transmitter, the corrected maximum error;
** With TRL18 transmitter
|

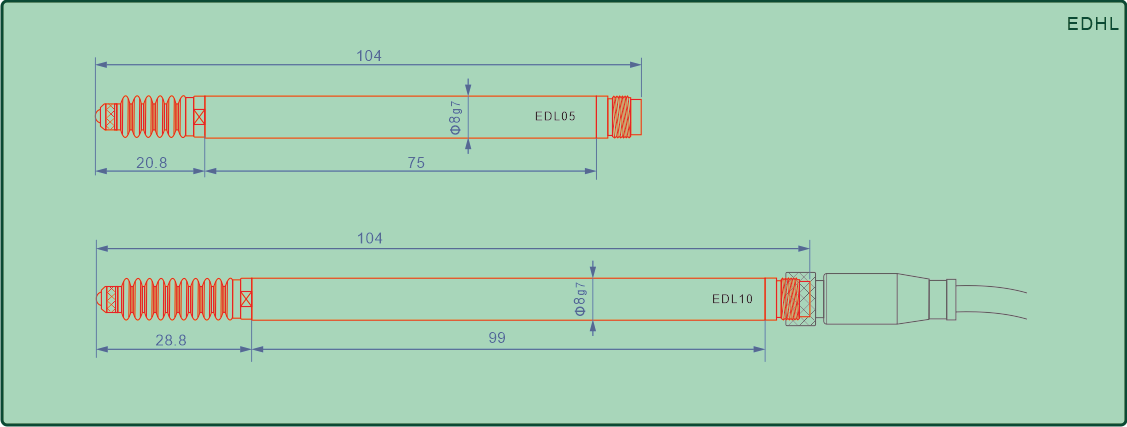

Dimensions
|
|
