EDV100 Depth-measuring Device Calibrator

for Rockwell hardness tester

Applicable to the accuracy detection and calibration of indentation measuring mechanism of Rockwell hardness tester.
Integrated, high rigidity main body.
For the high ratio reduction mechanism, turn the knob gently to support the preload for measurement.
Built in high-precision grating displacement sensor.
Conform to GB/t232.2, ISO 6508.2 and ASTM E18.

Measuring Range 7 mm (max.)
Resolution 0.1 µm or 0.1 HR
Accuracy 0.2 µm or 0.2 HR
Displayer 256*64 LCD with backlit
Power 5 VDC

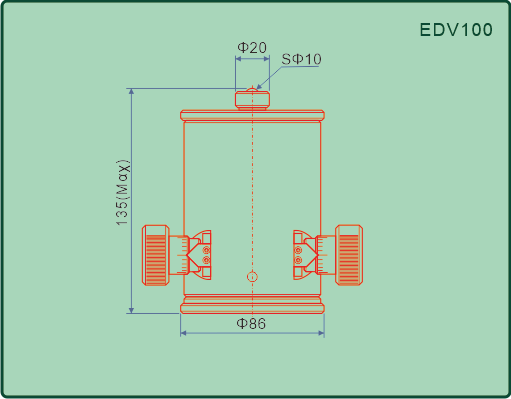

Dimensions Sensor: Φ 86 x 133 mm, Display Unit: 195 x 170 x 88 mm
