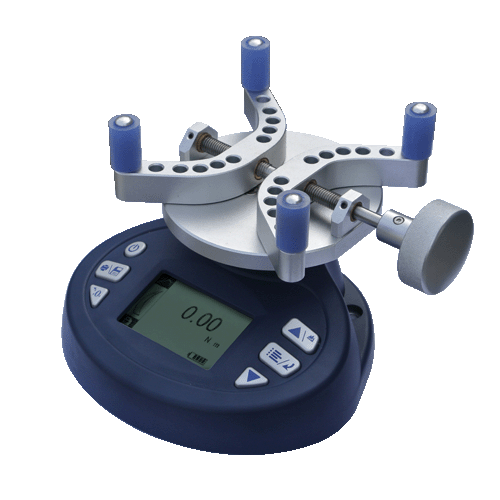

ECT Digital Cap Tester

EFG Feasures

  • Accuracy: ±0.3%

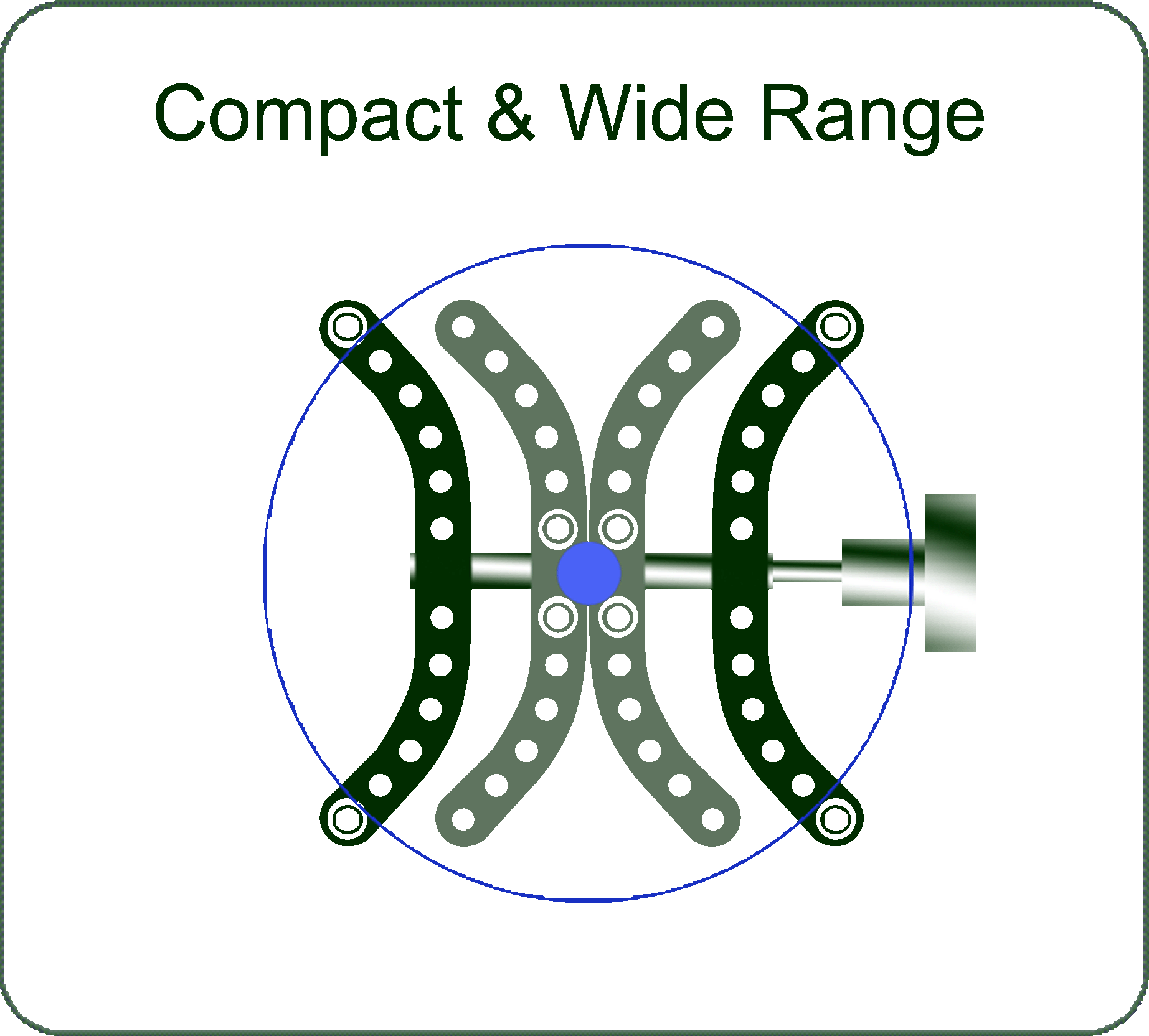

  • Clamping Range:  Φ19.5~Φ190mm

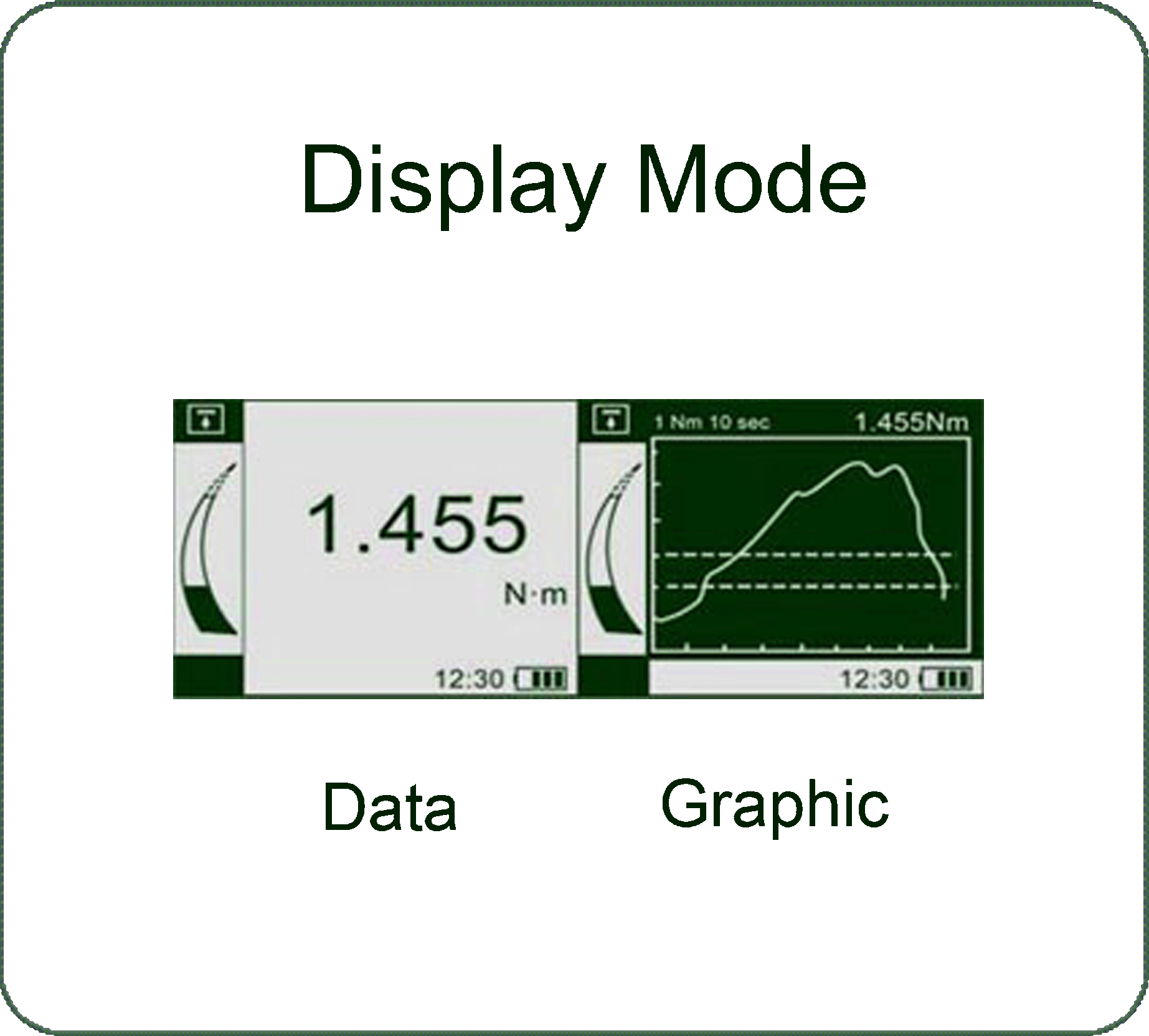

  • Display Mode: Data/Graphic

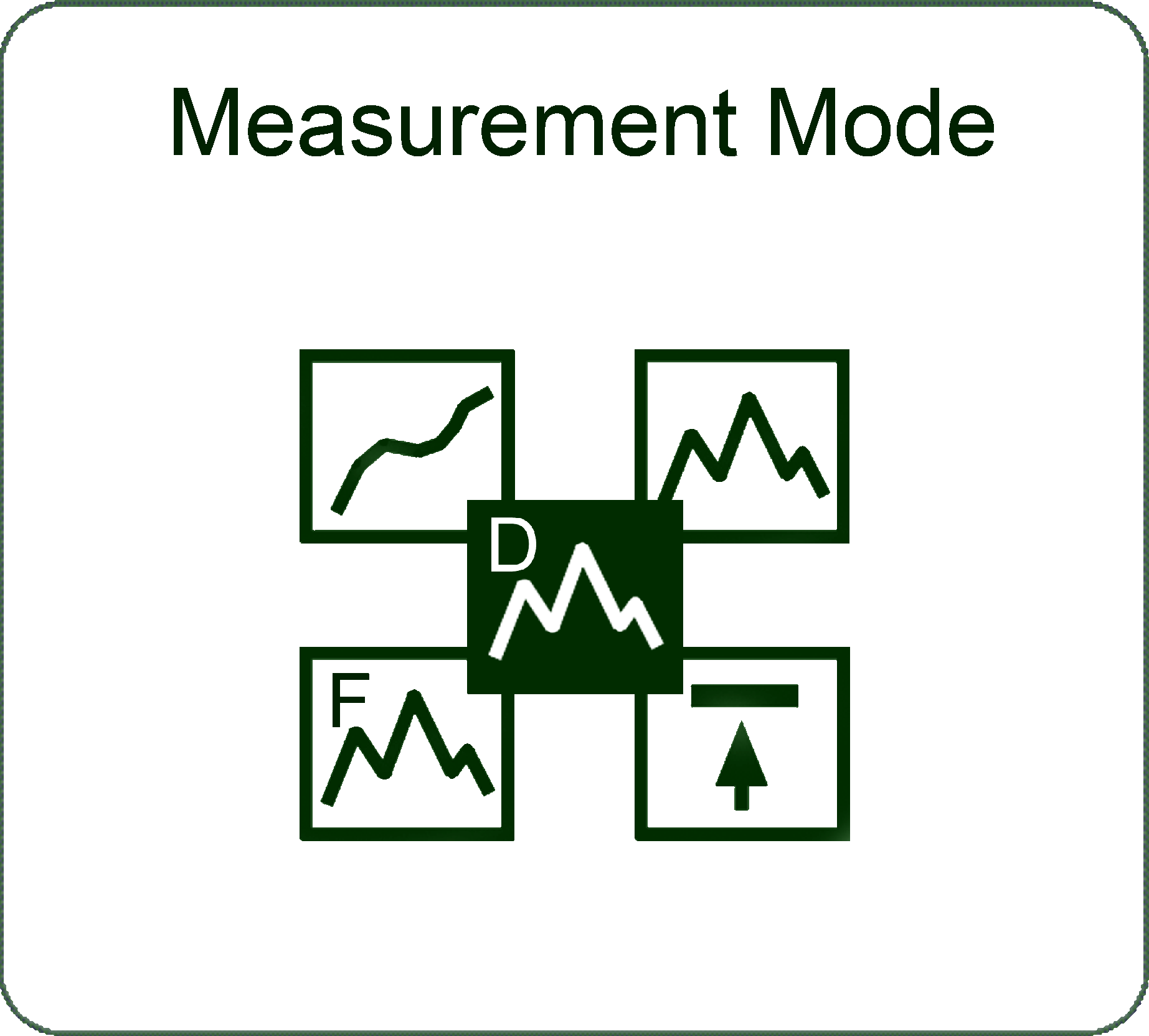

  • Measuring Mode: Track, Peak, First Peak, Double Peak, Preset
  • Units: N*m,N*cm,kgf*cm,lbf*ft,lbf*in
  • Display Mode: Data/Graph

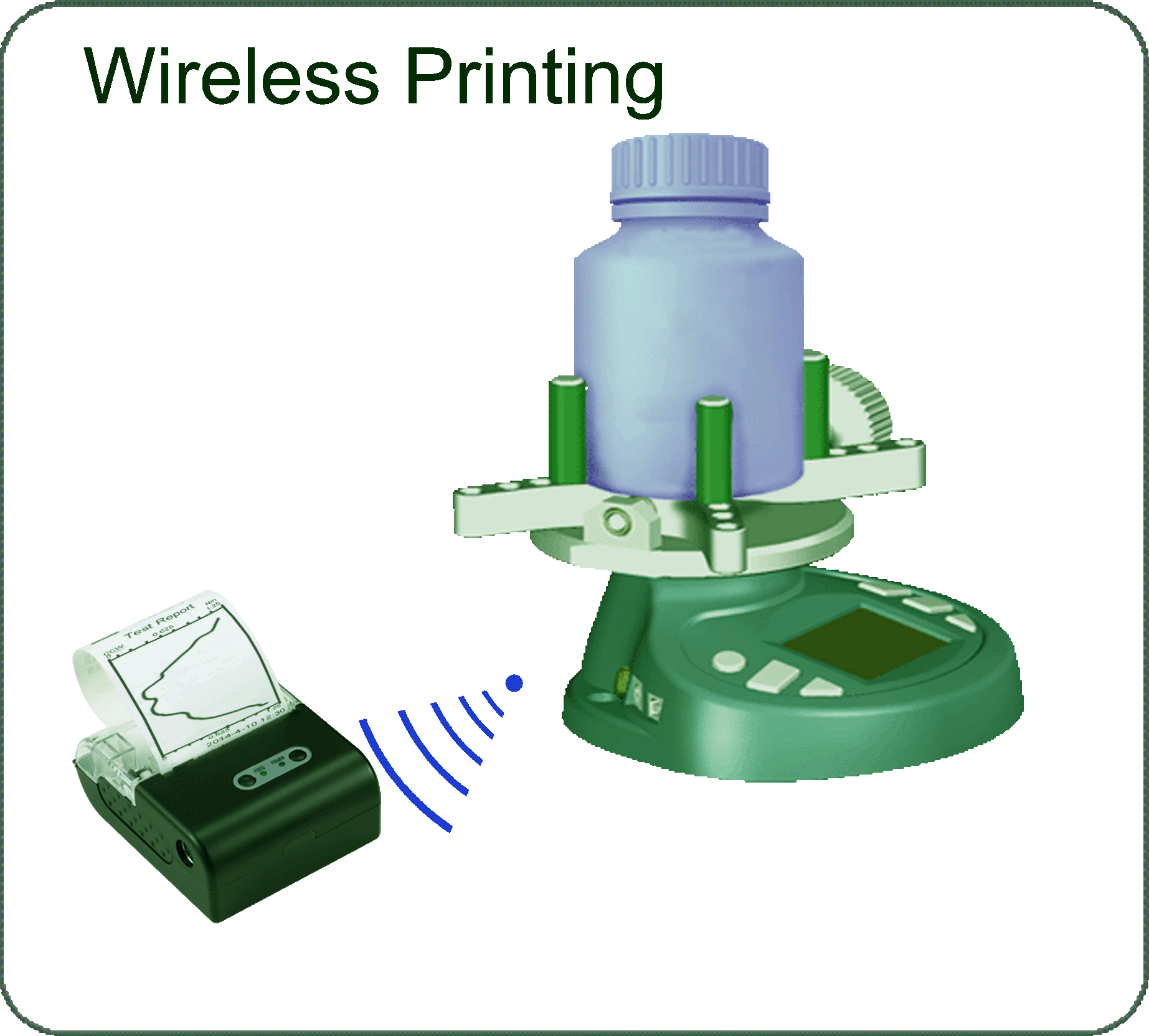

  • Printing: Wireless Printer
  • Multiple data interfaces, connect to PC easily

    CE


  •                  Models

    Model Capacity/Resolution. Order No.
    N*m N*cm kgf*cm lbf*ft lbf*in
    ECT2 0.1~2 / 0.0002 10~200 / 0.02 1~20 / 0.002 0.07~1.48 / 0.0002 0.89~17.7 / 0.002 EON424b0000
    ECT5 0.25~5 / 0.0005 25~500 / 0.05 2.5~50 / 0.005 0.18~3.7 / 0.0005 2.2~44.3 / 0.005 EON424c0000
    ECT10 0.5~10 / 0.001 50~1000 / 0.1 5~100 / 0.01 0.37~7.4 / 0.001 4.4~88.5 / 0.01 EON424d0000
    ECT20 1~20 / 0.002 100~2000 / 0.2 10~200 / 0.02 0.7~14.8 / 0.002 8.9~177 / 0.02 EON424e0000



    Accessories

    Mainly Unit
    Printer Cable
    Data Cable
    Recharger
    Package


    Optional

    Mini Printer EPX58F
    EST-TT2 Torque Test Stand
