EST-TT2 Torque Test Stand

EFG
Order No.: EON420b0000

Dimension Drawing
Feasures
  • Capacity:
  • 100N.m
  • Maximum Adjustable Height:
  • 430mm (17 inch)
  • Maximum Slide Travel:
  • 50mm (approx 2 inch)
  • Throat:
  • 120mm (4.7 inch)
  • Angular Rate:
  • 9 °/per Wheel rev.
  • Diameter of Mounting Disk:
  • φ160mm (4.7 inch)
  • Weight:
  • 17kg

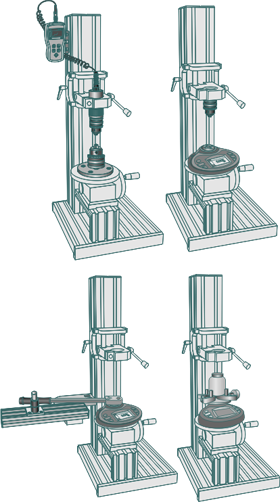

    Suitalbe for:





    Accessories

    Main Unit
    Drill Chuck Clamp
    Package


    Optional

    Torque Wrench calibration Fixture
    Three-jaw-chuck Clamp
